External Drainage

Thoughtful arrivals. Lasting first impressions.

Your configuration

View my list

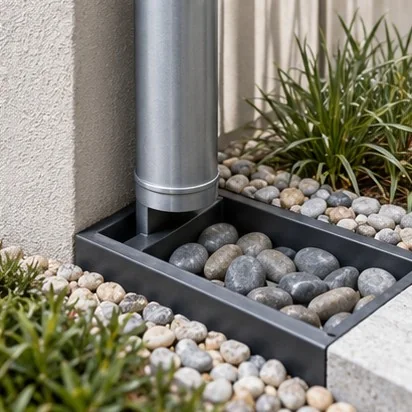

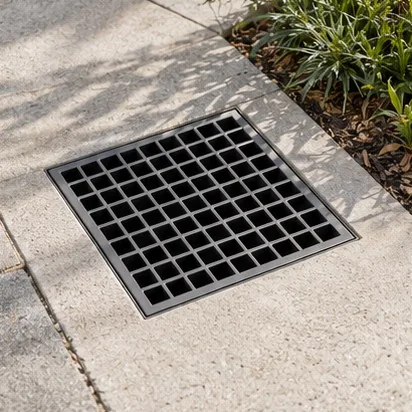

External Drainage — Surface channel; representative concept — Representative concept imagery. Materials and colours require confirmation.

Make it yours

Configurations.

The details

Specification guide.

General specification guide — final selections and project requirements to be confirmed

System: Surface channels, grated pits and project-specific pipework as designed
Layout: Pit positions, pipe routes and discharge point to follow the approved drainage plan
Levels: Set grate and inlet levels with finished paving falls and overflow paths
Sizing: Pipe diameter, channel capacity and pit dimensions to be determined by the drainage designer
Grates: Load capacity, material and openings to suit pedestrian or vehicle use at each location
Maintenance: Provide access to pits and outlets for inspection and removal of debris

Reviewed 24 October 2026. General product and installation guidance. Confirm exact values against the chosen product data, approved drawings and signed project schedule.
